Our Machines

Engineered for Real-World Performance

Industrial-grade biomass processing machinery designed for consistent output, minimal downtime, and long operational life.

Dual Roller Shaft Shredder

Dual Roller Shaft Shredder

Heavy-duty twin-shaft machine for consistent size reduction of biomass, industrial and agro waste materials with hardened cutting blades.

120–240 HP · 3–12 t/h

Specifications

Parameter 120 HP 150 HP 200 HP 240 HP
Throughput 3–4 t/h 4–5 t/h 7–8.5 t/h 10–12 t/h
Output size 25–45 mm 25–45 mm 25–45 mm 25–40 mm
Input Logs, branches, agricultural biomass
Drive Heavy-duty gearbox + high-torque motor

Highlights

  • Hardened, replaceable cutters for long wear life
  • Fully advanced programmable control panel
  • Safety interlocks, emergency stop, overload protection
  • Low maintenance with accessible inspection doors

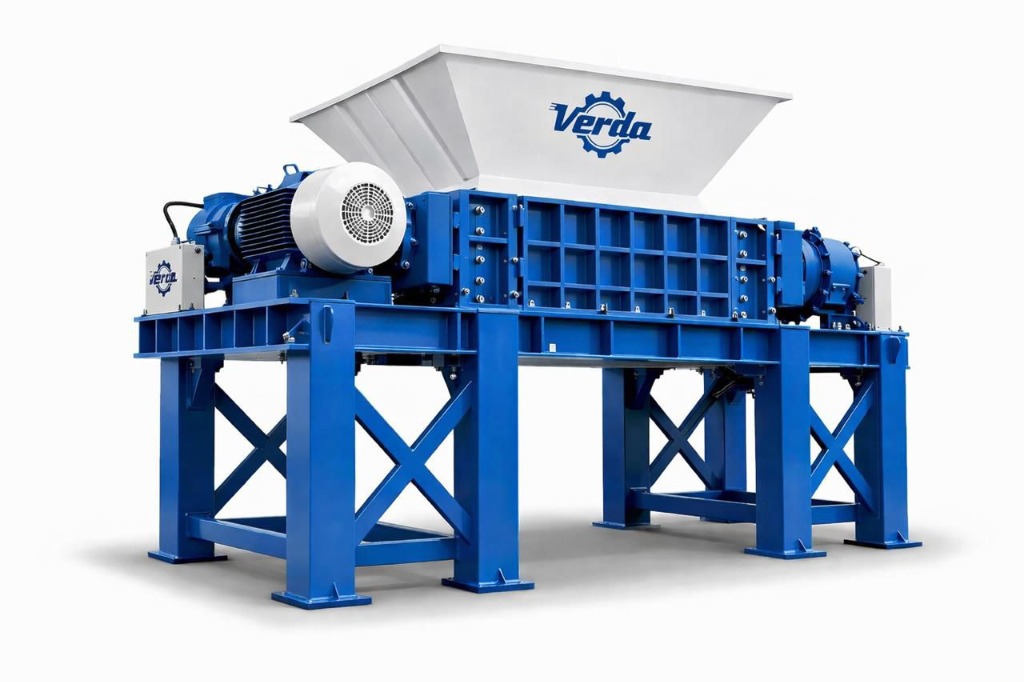

Roundbale Shredder

Roundbale Shredder

Industrial round-bale shredders engineered for primary size reduction of agricultural waste and whole round bales. Built with high-torque gear systems and durable cutting assemblies for continuous, low-maintenance performance.

Twin 90+90 kW Motors · 8–12 TPH · 70–110 mm Output

Technical Specifications

Parameter Specification
Motor Power 90+90 kW (Twin Motors)
Capacity 8–12 Tonnes/Hour
Output Size 70–110 mm
Drive System High-Torque Gear
Feed Type Direct Round Bale
Application Agricultural Waste

Highlights

  • Direct feeding of whole round bales
  • Uniform 70–110 mm output size
  • Durable cutting assemblies — long service life
  • Low maintenance — continuous operation
Hammer Mill

Hammer Mills

Efficient size reduction with uniform powder production. Heavy-duty rotor, durable replaceable hammers, and quick-change screens.

132–315 kW · 2–8 t/h

Specifications

Model Motor Capacity Output
Gxp75×120 132 kW 2–3 t/h Fine powder
Gxp75×120 160 kW 3–4 t/h Fine powder
Gxp75×150 200 kW 4–5 t/h Fine powder
Gxp75×150 315 kW 6–8 t/h Fine powder

Highlights

  • Bi-directional operation with dual-sided access
  • Adjustable screens for target particle size
  • Heavy-duty bearings for continuous operation
  • Emergency stop & overload protection
Pulse Jet System

Air Pollution Control (Pulse Jet)

Pulse Jet Dust Collection System for hammer mills, dryers and pellet lines. Automatic air pulses clean filter bags for continuous operation.

Fully Automated · Continuous Operation

Highlights

  • High efficiency dust collection
  • Automatic pulse-jet bag cleaning
  • Fully Automated Control System
  • Easy bag replacement & maintenance
  • Improves plant cleanliness and safety
Ringdie Pellet Mill

Ringdie Pellet Mill

Engineered for consistent, high-density pellet production with robust ring-die and roller assembly, heavy-duty gearbox & precision feed.

160–250 kW · 2–4.5 t/h

Specifications

Parameter XGJ560+8B XGJ860+8B
Capacity 2–2.5 t/h 4–4.5 t/h
Motor power 160 kW 250 kW
Pellet diameter 6, 8, 10, 12 mm 6, 8, 10, 12 mm
Moisture 10–15% recommended
Output shape Solid cylindrical pellets

Highlights

  • Continuous duty industrial design
  • High-density pellet formation
  • Stable power consumption profile
  • Long operational lifespan
Rotary Drum Dryer

Rotary Drum Dryer

Rugged, continuous rotary dryer for reducing moisture in biomass, wood chips, sawdust and other materials before pelleting.

Continuous Operation · Auto Temp Control

Highlights

  • High efficiency drying
  • Uniform material drying
  • Heavy-duty rotary drum design
  • Automatic temperature control
  • Strong and reliable construction

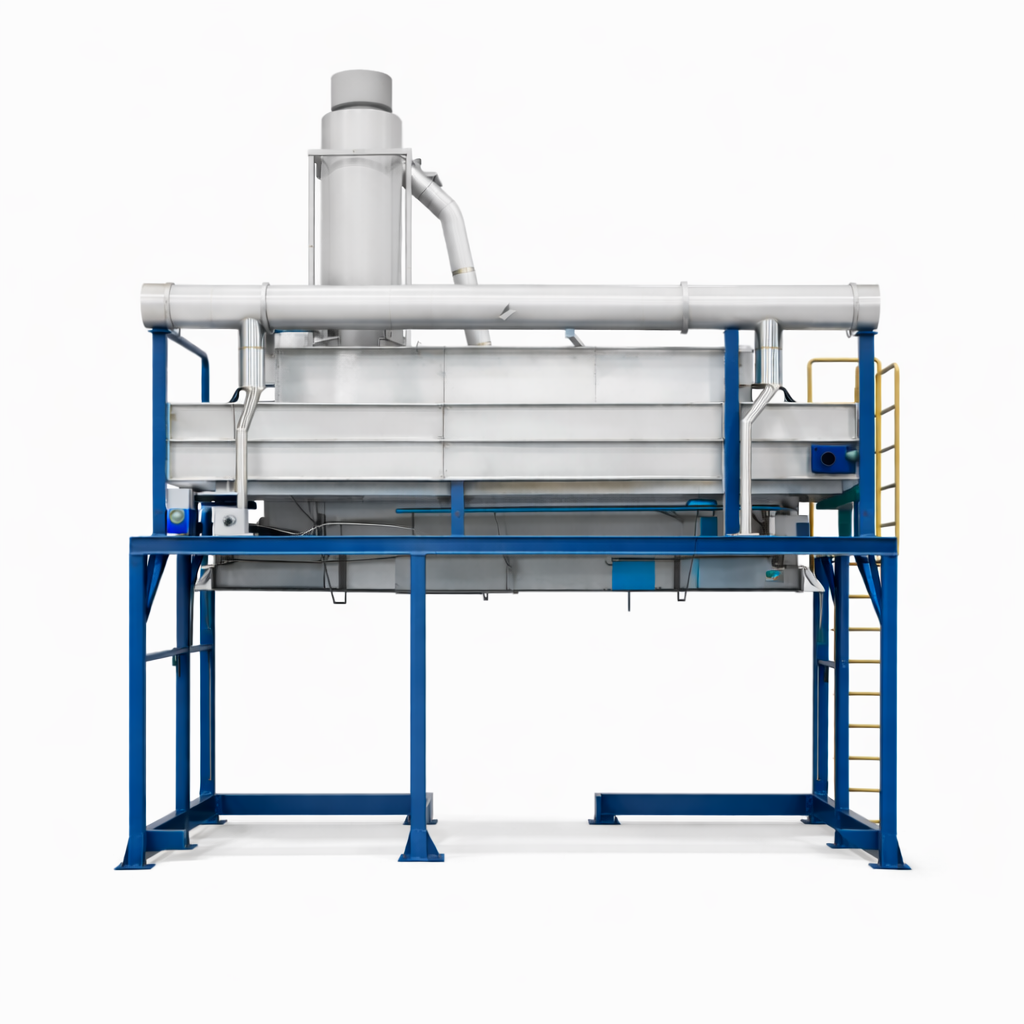

Automatic Feeder Tank

Automatic Feeder Tank

Distributes material equally to multiple pellet mills from a buffer hopper or silo. Designed to optimize throughput and reduce surge loads.

Automated Speed Control · Equal Distribution

Highlights

  • Equal material distribution
  • Automatic feeding control
  • Prevents overloading or underfeeding
  • Heavy-duty industrial design

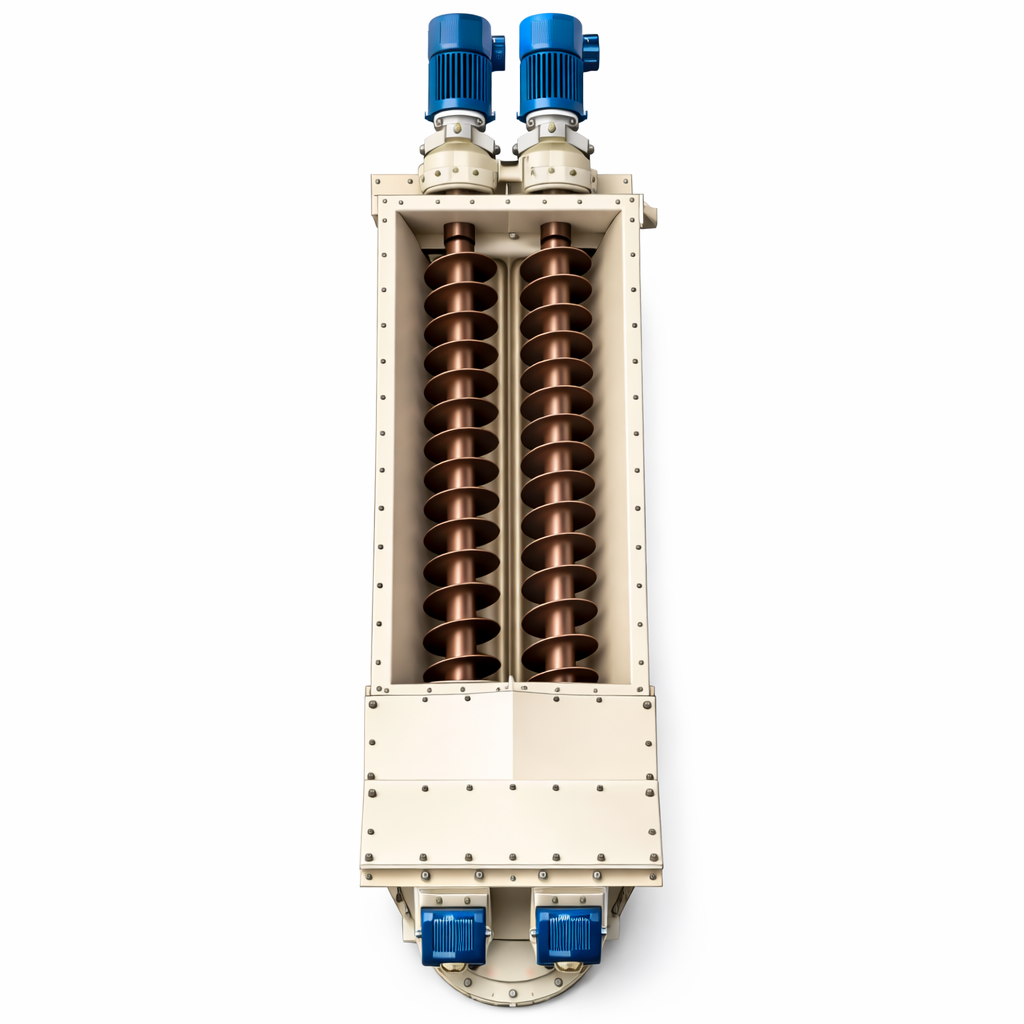

Twin Screw Feeder

Twin Screw Feeder

Feeds shredded biomass material automatically and evenly into hammer mills. Twin screw design ensures smooth flow without blockage.

Continuous Flow · Anti-Blockage

Highlights

  • Positive, controlled feed into hammer mill inlets
  • Twin screw design for smooth flow
  • Automated control for speed adjustment
  • Easy maintenance & heavy-duty construction

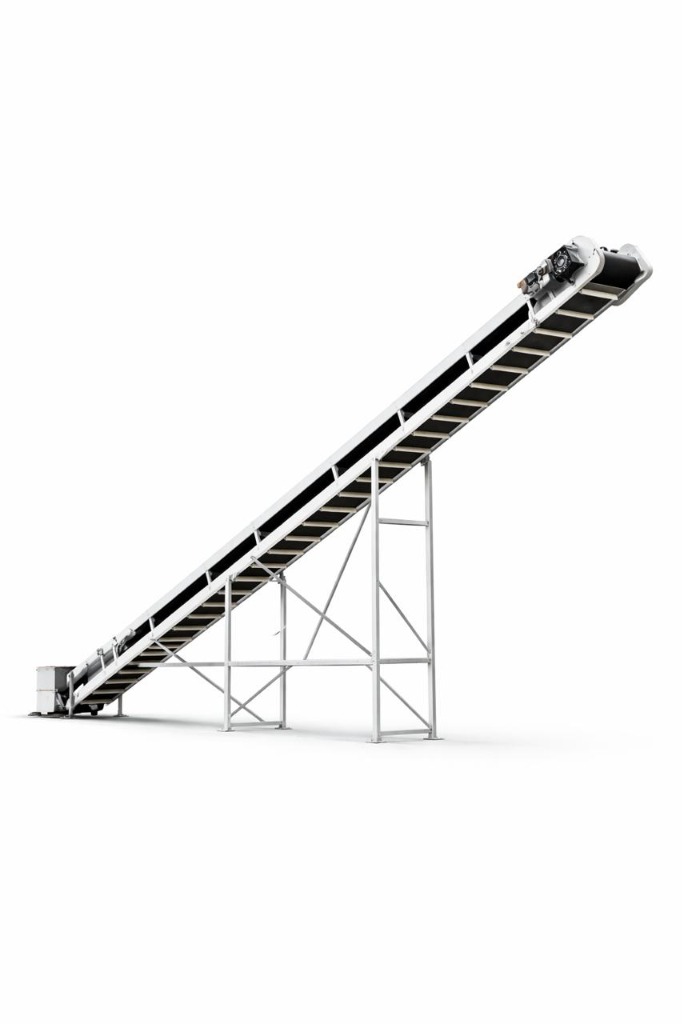

Belt Conveyor

Belt Conveyors

Versatile conveying for moving raw material, pre-treated biomass, chips or finished pellets between plant sections.

VFD Speed Control · Multiple Belt Types

Highlights

  • Smooth and continuous material transfer
  • Strong belt and frame construction
  • VFD speed control option
  • Wide range of widths and belt types
  • Easy maintenance — quick belt removal
Flash Dryer

Flash Dryer

An industrial machine that rapidly dries biomass materials using hot air and pneumatic conveying, reducing moisture from 15–40% to produce dry material suitable for further biomass processing.

Single Pass & Double Pass Models · 15–40% Moisture Handling

Highlights

  • Fast and continuous drying process
  • Handles raw material with 15–40% moisture
  • Pneumatic conveying based drying system
  • Ideal for biomass processing industries
  • Available in Single Pass and Double Pass models

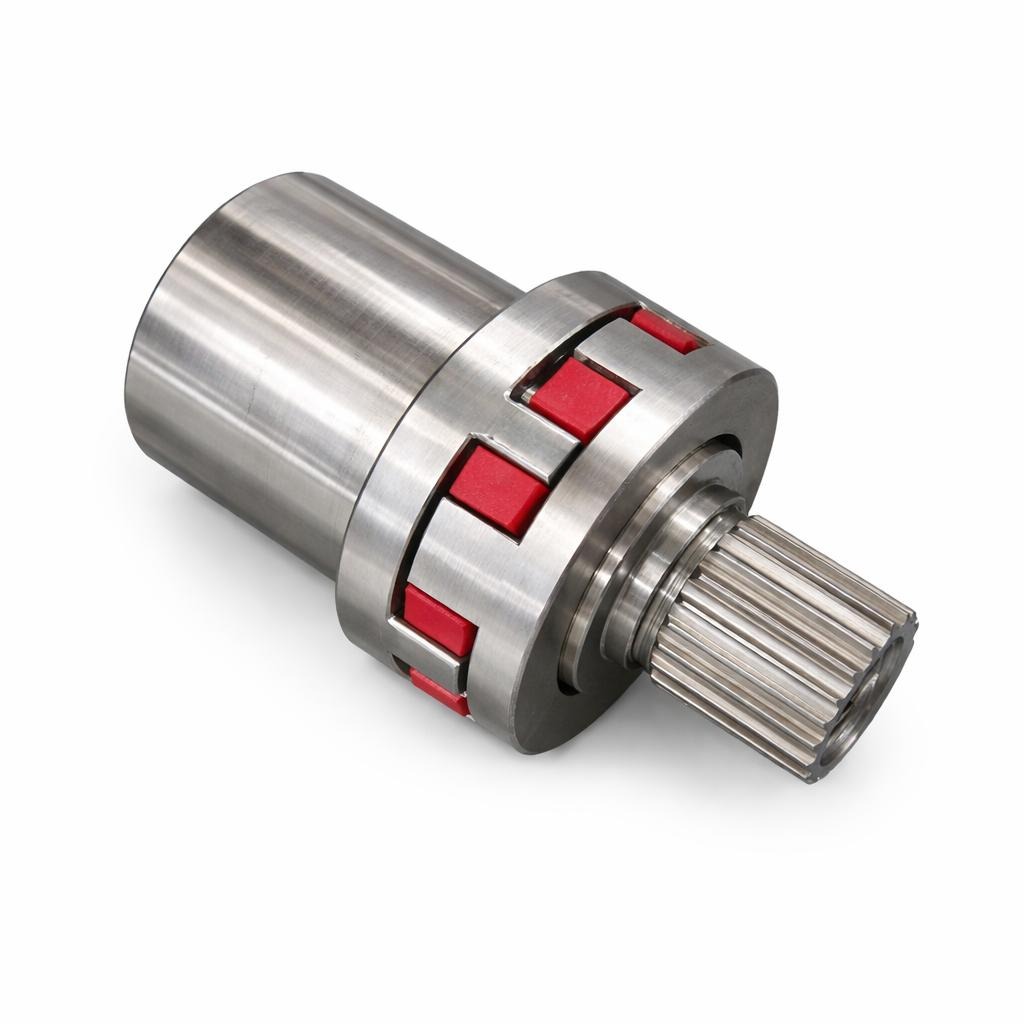

Coupling Ring Die Roller Assembly Screen Bearing

Spare Parts

Complete range of genuine spare parts — couplings, ring dies, rollers, screens, and bearings for all Verda Machines equipment. Fast replacement for minimal downtime.

Ready Stock · Fast Replacement · OEM Quality

Available Parts

Part Material For
Couplings Steel + Elastomer All machines

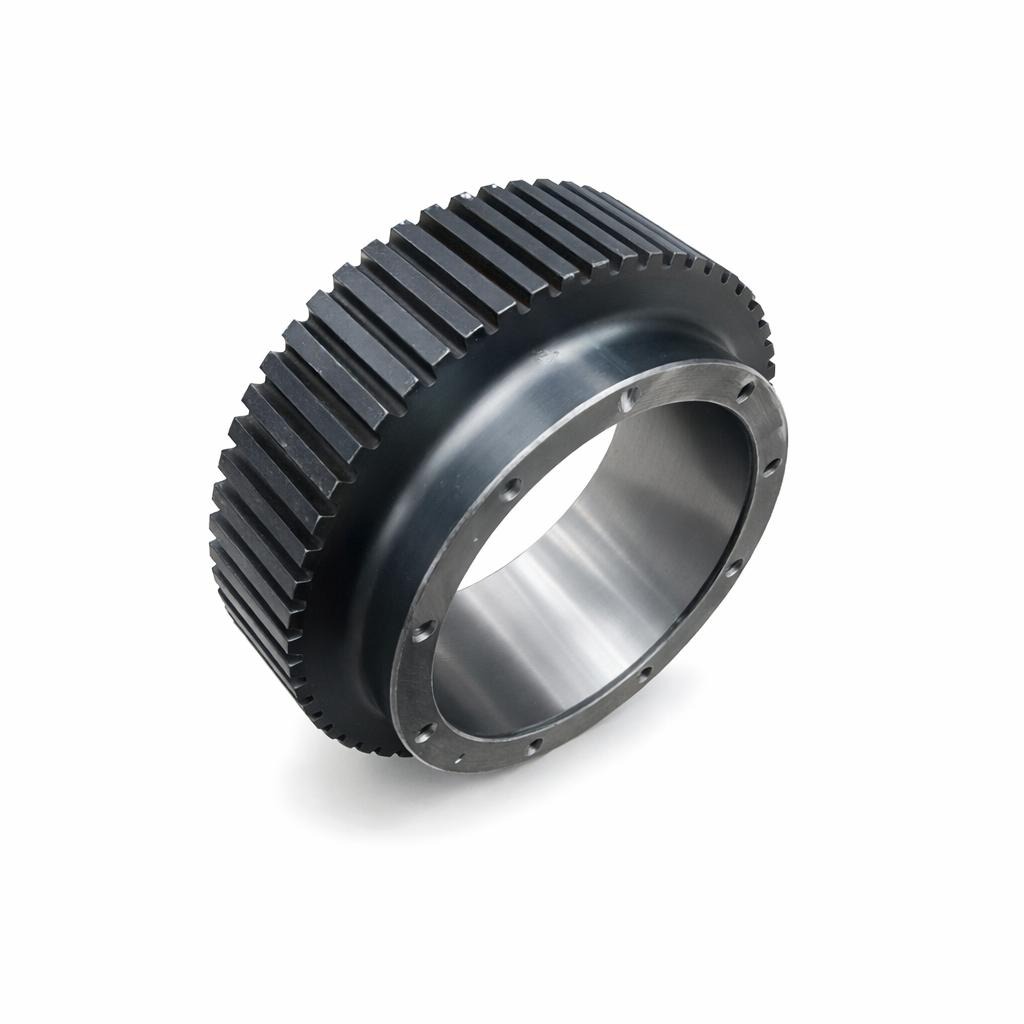

Ring Dies Alloy steel Pellet mills

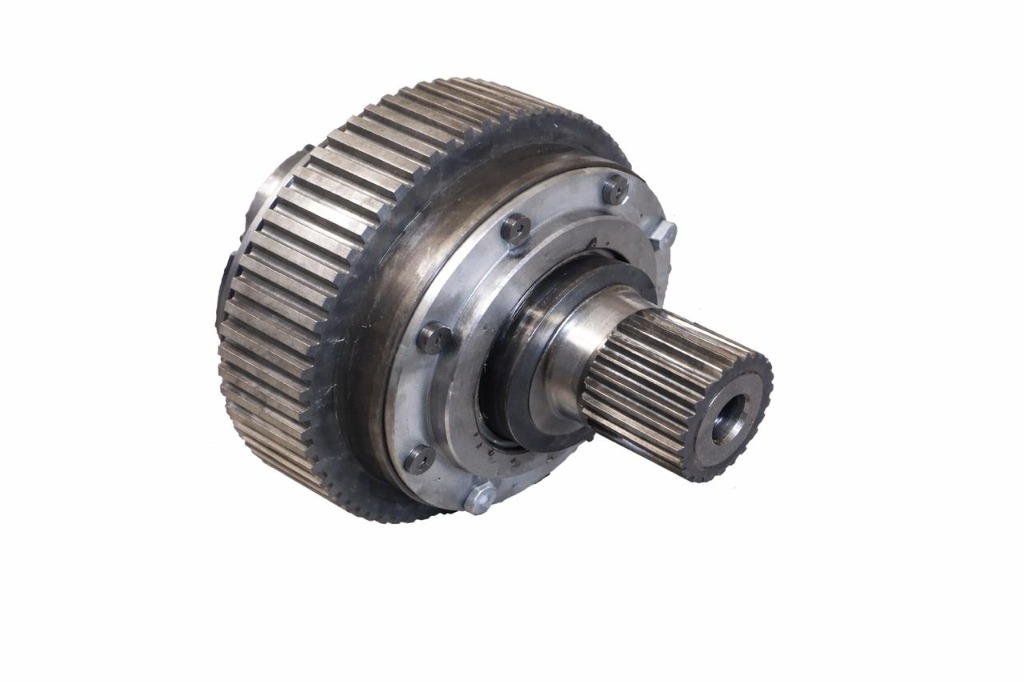

Rollers Hardened steel Pellet mills

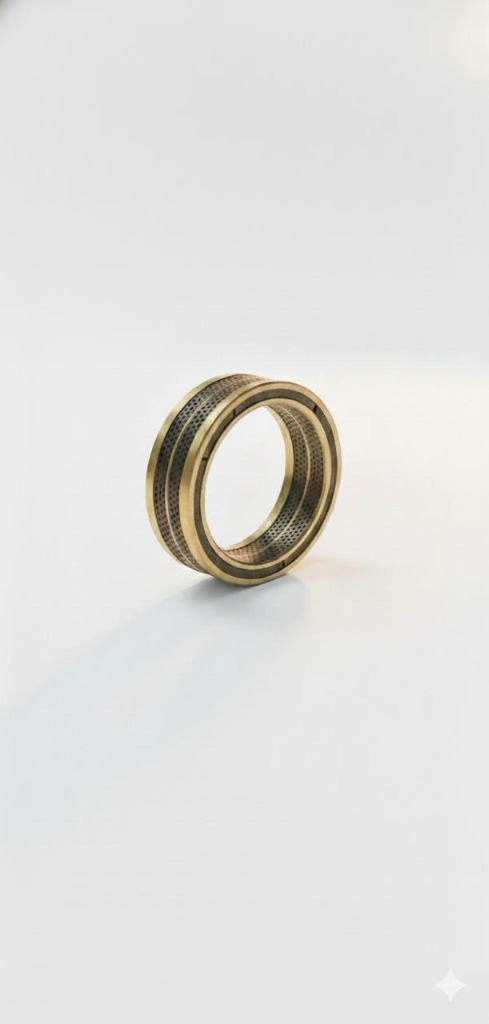

Screens Perforated steel Hammer mills

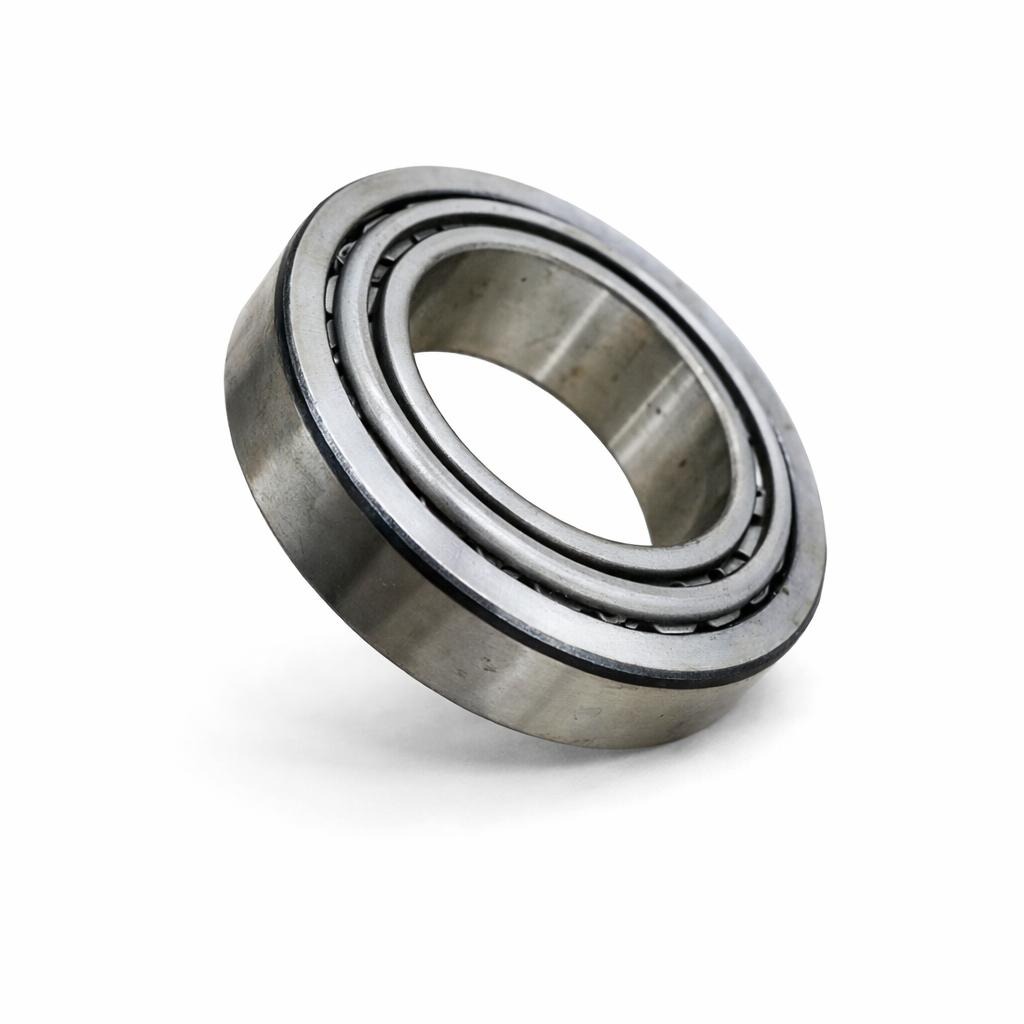

Bearings Tapered roller All machines

Highlights

  • OEM quality — precision manufactured
  • Ready stock for fast replacement
  • Compatible with all Verda Machines models
  • Extended lifespan with hardened materials
